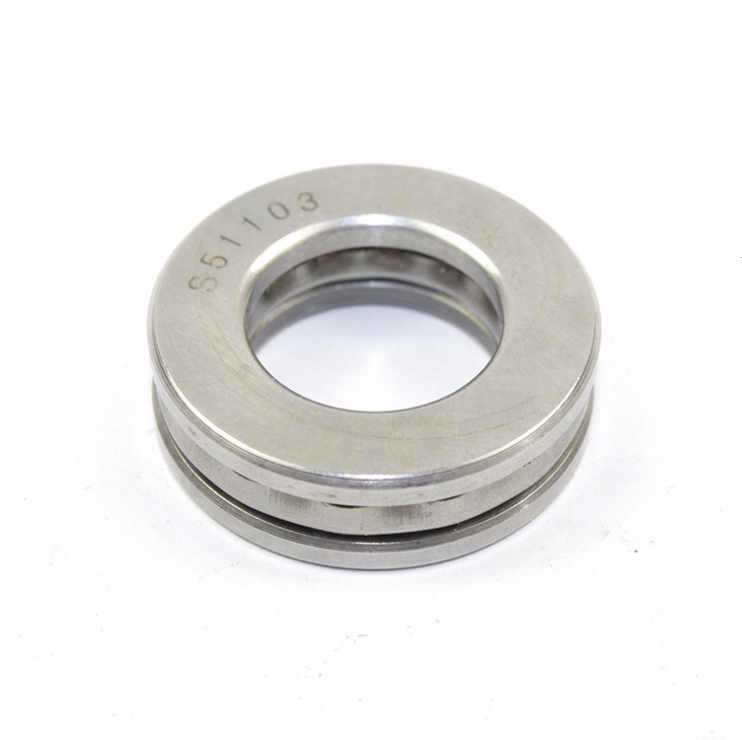

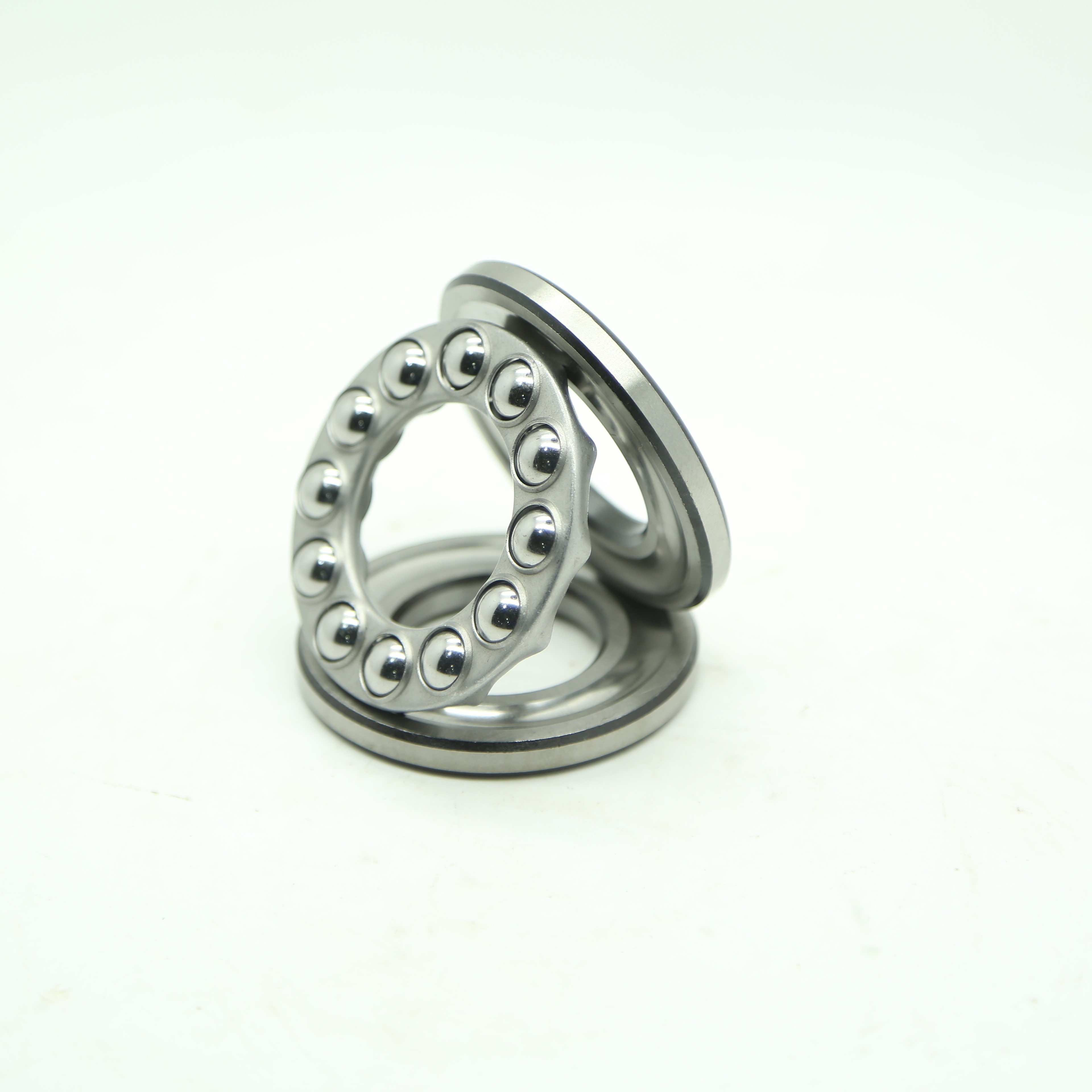

F4-10M Single Direction Axial Thrust Bearing Chrome Steel Ball Bearings

Name: F410M Single Direction Axial Thrust Bearing Chrome Steel Ball Bearings
Brand: SILURIAN
Price: 1 USD

China F4-10M Single Direction Axial Thrust Bearing Chrome Steel Ball Bearings wholesale

Brand Name : SILURIAN

Model Number : F4-10M

Certification : SGS, ISO9001:2015

Place of Origin : China，liaocheng

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/week

Delivery Time : 5-8 work days

Packaging Details : Plastic tube+individual box+carton + Pallet ; According to customer demand

Number of row : Single Row

Material : GCR15

OEM : Accept

Packing : Single box

Cage : Brass ,steel cage

Stock : Rich stock

Contact Now

Size 4*10*4mm Axial

Thrust Bearing Chrome Steel Ball Bearings

Ⅰ. About Miniature ball bearing:

Specifiction Of Thrust Ball Bearing

Circle Material	GCR15,Gcr15SiMn,Gcr18Mo
Roller Material	GCR15,Gcr15SiMn,Gcr18Mo
Clearance	C2, C3,C4,C5
Hardness	HRC58-62
Certificate	ISO9001:2008
Number of Row	single/double row
Cage	Copper/brass
Greese	SRL ,PS2, Alvania R12
OEM	Available
Stock	Large stock

II . Model list as below:

Number	Specification			Rated Load(KN)		Speed(r/min)		Weight
	D(mm)	D(mm)	W(mm)	Cr(N)	Cor(N)	Grease	Oil	kg
51100	10	24	9	10	14	6500	10000	0.02
51101	12	26	9	10.3	15.4	6500	10000	0.022
51102	15	28	9	10.5	16.8	6100	9400	0.024
51103	17	30	9	10.8	18.2	6100	9400	0.028
51104	20	35	10	14.2	24.7	5100	7900	0.04
51105	25	42	11	19.5	37.2	4400	6800	0.059
51106	30	47	11	20.4	42.2	4300	6600	0.068
51107	35	52	12	20.4	44.7	3900	6000	0.09
51108	40	60	13	26.9	62.8	3400	5300	0.12
51109	45	65	14	27.8	69.1	3200	5000	0.15
51110	50	70	14	28.8	75.4	3100	4800	0.16
51111	55	78	16	34.8	93.1	2800	4300	0.24
51112	60	85	17	41.4	113	2600	4000	0.29
51113	65	90	17	41.7	117	2400	3700	0.34
51114	70	95	18	43	127	2300	3600	0.36
51115	75	100	19	42.3	127	2200	3400	0.42
51116	80	105	19	44.6	141	2100	3300	0.43
51117	85	110	19	45.9	150	2100	3200	0.46
51118	90	120	22	59.7	190	1900	2900	0.68
51120	100	135	25	85	268	1600	2500	0.99

Our precision deep groove ball bearings are designed for high precision, low noise, small vibration, high reliability and long life. They are mainly used in various types of electric motors. They are also known as EMQ (Electric Motor Quality) bearings.

F4-10M Single Direction Axial Thrust Bearing Chrome Steel Ball Bearings

Ⅱ. Feature : high precision, high rotating speed, low friction, small clearance, low-noise, competitive price with good quality .

Ⅲ. Application: household appliances, dental drill, toys, electric power tools, electric motors, machine tools, measuring instruments, office machinery, Robot joint, facial beauty rollers, drone etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
